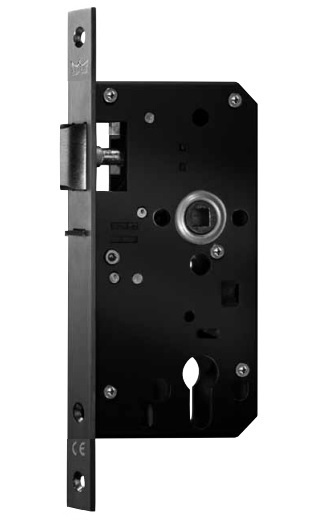

Dorma 393 Classroom Function Mortise Sash Lock
Features & Functions
Grade 3 – EN 12209 approved for fire-rated doors with CE certificate
Lock case size DIN 18251-1, closed case, zinc plated, black painted
Lock case prepared for Euro profile cylinder (DIN18252) and standard fittings
Latch handing is reversible – anti-trust latch with snib – latch, stainless steel, satin
Split follower, stainless steel, 8 mm square hole, mounted in drawn steel bushes, outside follower, lockable by cylinder
Centred forend, satin stainless steel 1.4401 / AISI 316
Delivered with split spindle (8 x 110 mm)
Non Handed
Backset
X-55mm Y-24mm
