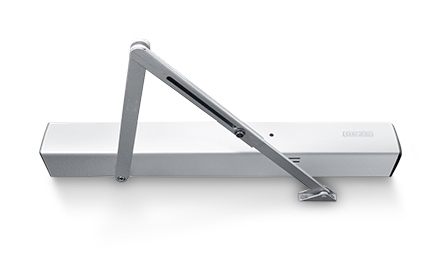

TS 4000 R – Pinion door closer with an integrated smoke switch control unit
This overhead door closer with electro hydraulic hold-open device and a smoke detector integrated in the closer housing is authorised for mounting on fire and smoke protection doors. In the event of a fire, the smoke detector activates and the door closes on its own accord. When installed on double leaf doors, the TS 4000 R must be mounted on the moving leaf.
Product features
- Door closer TS 4000 R with electro hydraulic hold-open device and an integrated smoke detector for doors with up to 1400 mm leaf widths
- Operating voltage 230 V AC
- Closing force, infinitely adjustable EN 1-6
- End stop adjusted using the arm, closing speed can also be adjusted
- Optical closing force display
- Hold-open range 80°-180° (electro hydraulic)
- Additional smoke detector may be fitted
- Can be used for right and left swing doors without conversion
- For fire and smoke protection doors
